Flashburner rev 2 Design Resources

A better, updated flash ROM burner. Uses a spartan FPGA, switching power supply, cleaner layout and better socket. Also has an adapter on the bottom so you can make your own sockets and plug 'em into this burner. The gerbers reflect its origin as a reader for custom mask-programmed Sega Dreamcast ROMs.


Verilog for FPGA

Some of the first verilog I ever wrote...back in 1999...

Code (for windows 98)

Board layout

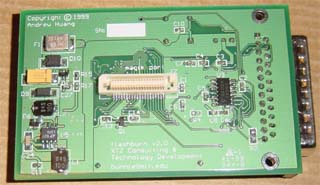

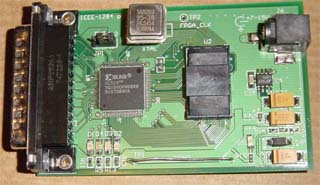

Picture of flashburner Picture of flashburner

All design documentation Copyright (c) Andrew S. Huang, 2002. All rights reserved.

Caveat Hacker: I make no guaratee or warantee on the correctness or functionality of the above documentation, nor do I assume any liability or responsibility for damages incurred by people who use the above documentation.
